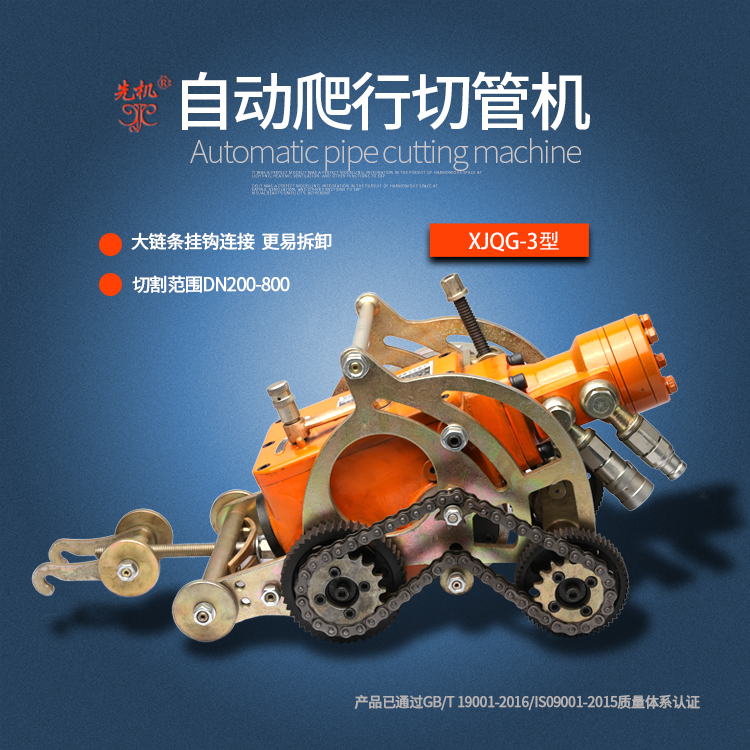

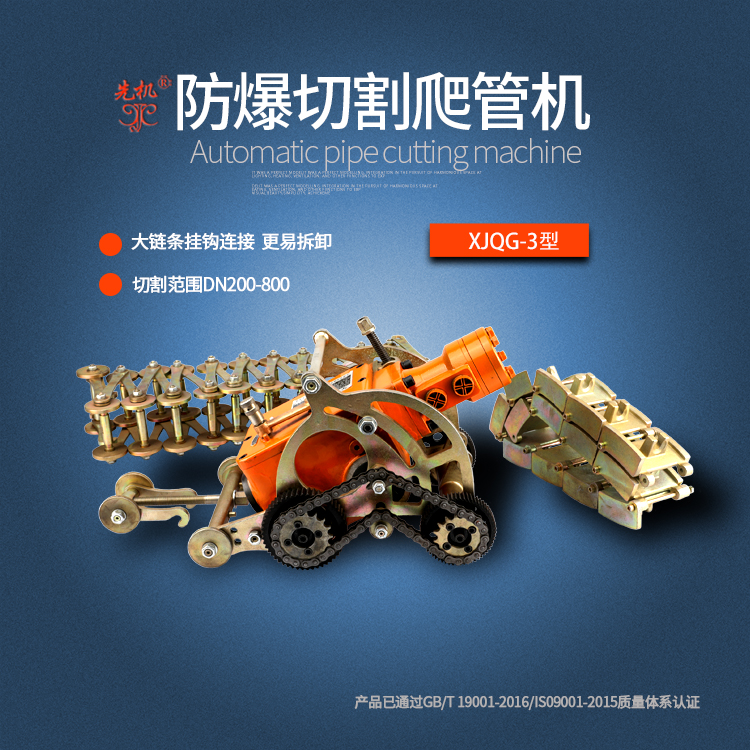

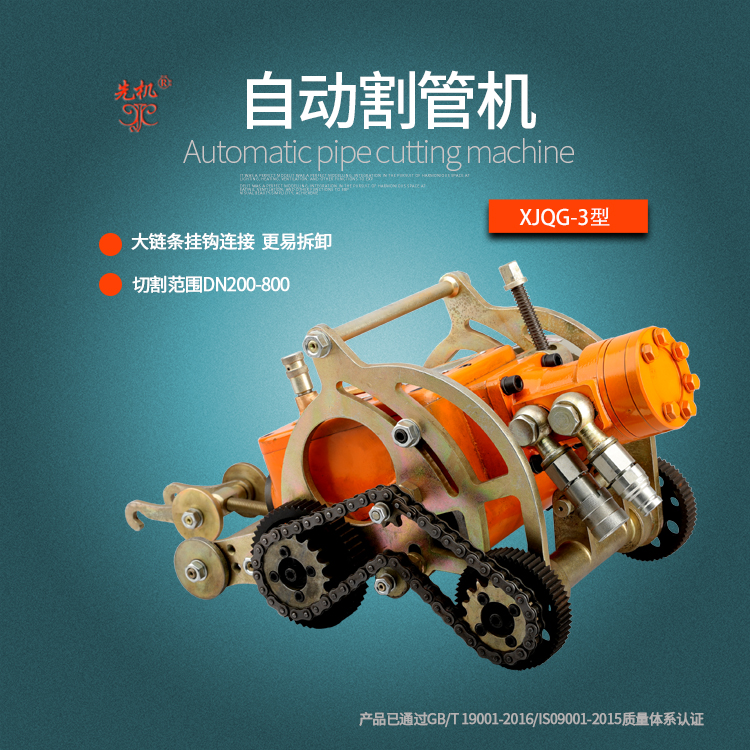

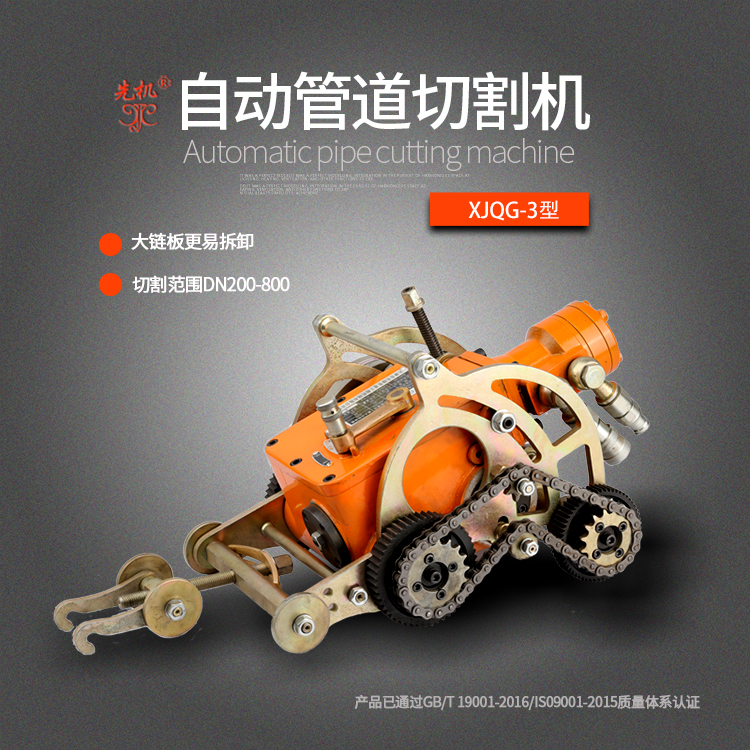

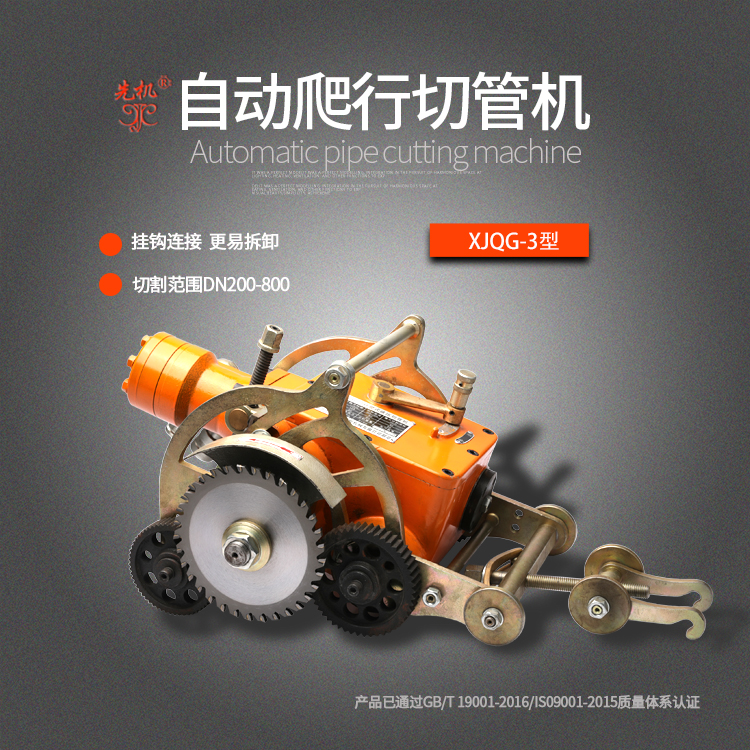

自動爬行切管機XJQG-3型
自爬式液壓切管機是對金屬管材以切削的形式進行切斷,以及對焊接坡口、承播坡口進行加工作業的管道切割機械。增設的導軌裝置,克服側向力,真正保證切口重合。采用液壓傳動,脫離電源,攜帶輕便,對野外作業和流動性施工作業更為適合。
切管機的機身小巧而便攜,SUV等輕型車輛即可裝載包括液壓泵站在內的設備,是管道搶修和管道維護作業十分便捷的切管工具。
Self climbing hydraulic pipe cutting machine is a mechanical tool that cuts metal pipes in the form of cutting, as wellas processes welding grooves and socket grooves. The added guide rail device overcomes lateral forces and trulyensures the overlap of the incisions. Adopting hydraulic transmission, detached from power supply, portable, moresuitable for outdoor and mobile construction operations.
The body of the pipe cutting machine is small and portable, and SUVs and other light vehicles can load equipmentincluding hydraulic pump stations. it is a very convenient pipe cutting tool for pipeline repair and maintenance operations.
可以對管道同時進行切割和坡口作業，以提高管道焊接速度。
Cutting and beveling operations can be perfommed simultaneously on pipelines toimprove welding speed.
管道切割作業時,切管機能夠穿越30mm距離空隙。
During pipeline cutting operations, the pipe cutting machine is able to pass through a gap of 30mm distance.
切管機應當具有行進暫停功能,實現單點切透管道壁,以便于對管道內的氣體進行測量以及管道材質的取樣。
The pipe cutting machine should have a driving pause function to achieve singlepoint cutting through the pipeline wall, in order to measure the gas inside the pipeline and sample the pipeline material.
切管機應當只需更換鏈條實現從DN200至4000管徑大范圍變化的切割作業，而不需要再增購其它設備，實現真正的一機專切。
The pipe cutting machine should only replace the chain to achieve a wide range ofcutting operations from DN200 to 4000 pipe diameters, without the need to purchaseother equipment, achieving true one machine dedicated cutting.
切管機應當按照IS09001標準及企業生產規范限定其安全切割速度，以保證其在危險環境下安全進行低溫、防爆、無火花作業。
The pipe cutting machine should limit its safe cutting speed in accordance withIS09001 standards and enterprise production specifications to ensure safe low-temperature, explosion-proof, and spark free operations in hazardous environments.

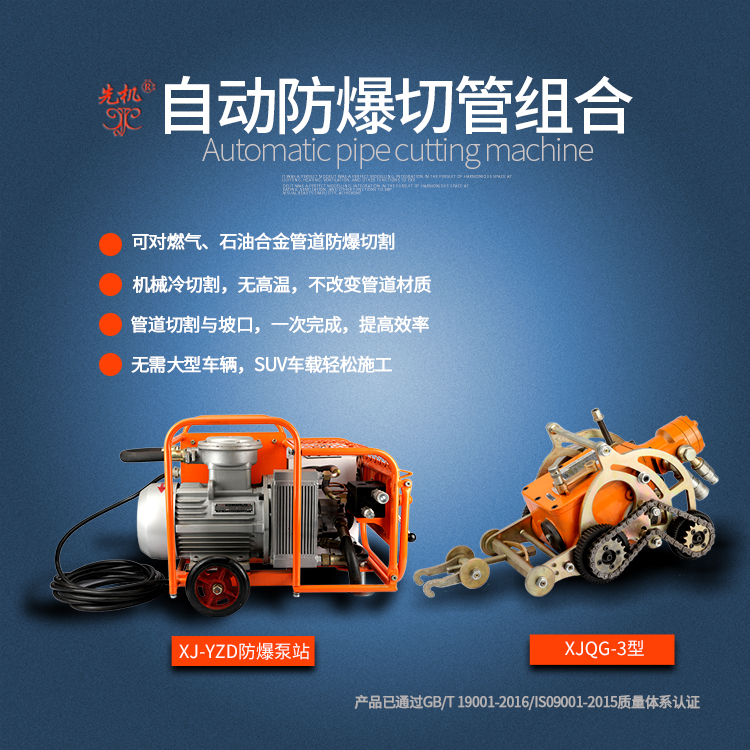

配套使用的液壓泵站應當提供穩定的工作壓力和流量,以滿足切管機在管道切割作業時所需的動力。
The hydraulic pump station used in conjunction should provide stable workingpressure and flow rate to meet the power requirements of the pipe cutting machineduring pipeline cutting operations.
